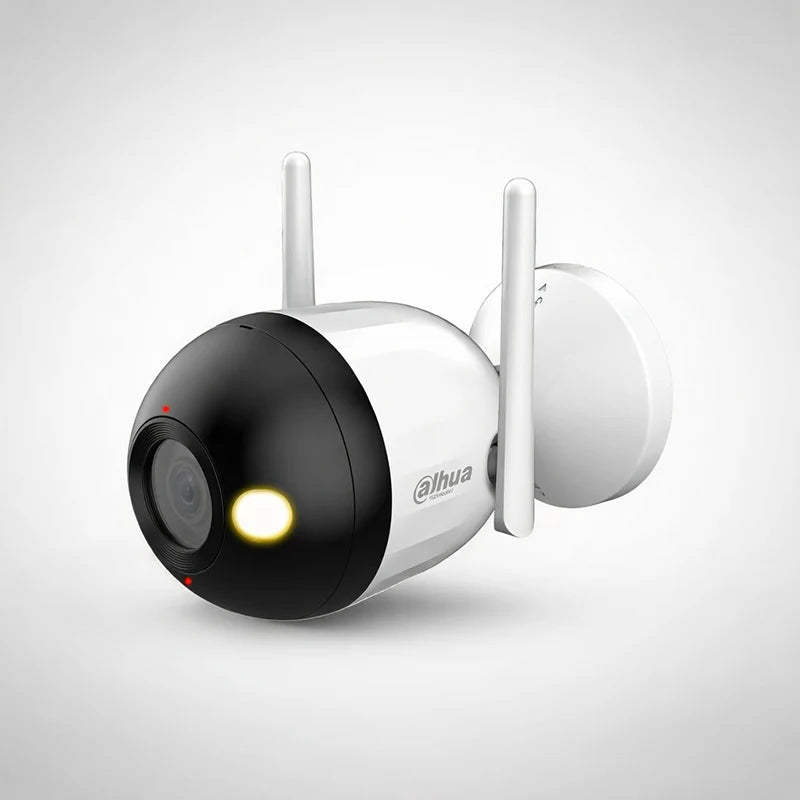

DAHUA DH-F2C-LED 3.6MM 2MP FULL COLOR WI-FI Camera Pakistan

Camera

Image Sensor

1/3" CMOS

Max. Resolution

1920 (H) × 1080 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 30 m (98.53 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR LED); 2 (Warm light)

Max. Aperture

F1.6

Field of View

2.8 mm: H: 98°; V: 55°; D: 115°

3.6 mm: H: 78°; V: 41°; D: 94°

Intelligence

Human Detection

Support the classification and accurate detection of human

Video & Audio

Video Compression

H.264B; H.264; H.264H; H.265

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 640 × 480@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

1080p (1920 ×1080); 1280 × 960 (1280 × 960); 1280 × 720 (1280 × 720)

Video Bit Rate

H.264: 24 kbps–4096 kbps
H.265: 9 kbps–4096 kbps

WDR

DWDR

Motion Detection

OFF/ON

Smart Illumination

Yes

Image Rotation

0°/180°

Built-in MIC

Yes, built-in speaker

Built-in Speaker

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G

Storage

Micro SD card (support max. 256 GB)

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS;Android

General

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

Power Supply

12 VDC

Power Consumption

Basic: 2 W (12 VDC)
Max. (H.265+warm light intensity): 6.5 W (12 VDC)

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP67

Casing Material

Metal + plasticstic

Product Dimensions

131.0 mm × 78.4 mm × 97.2 mm (5.47" × 4.80" × 3.83") (L × W × H)

Net Weight

266.5 g (0.59 lb)
